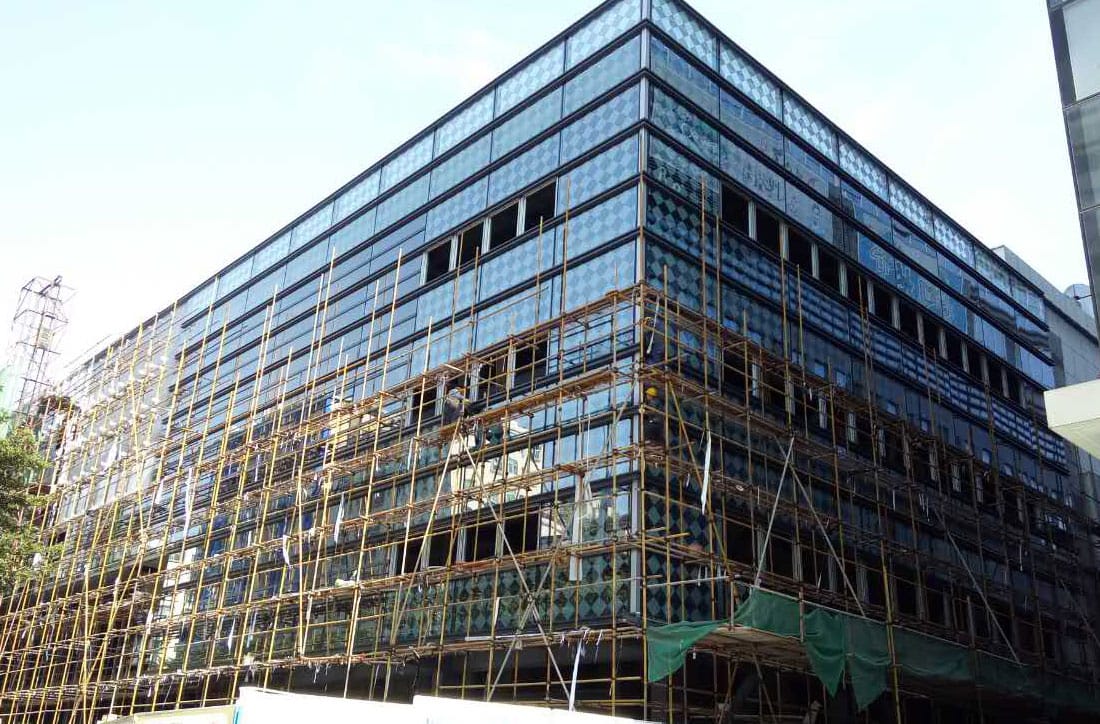

Glass Curtain Wall Measurement Guide

Glass curtain walls are widely used in commercial buildings, office buildings, shopping centers, residences and hotels due to their high-end beauty, transparent lighting, energy saving and environmental protection. As a customized product, the accuracy of the size of the glass curtain wall is directly related to the accuracy of subsequent processing and production and the smoothness of on-site installation. In order to ensure the perfect fit of the glass curtain wall system, on-site measurement becomes an indispensable step.

1. Why do you need to measure the size of the glass curtain wall on-site?

The design and installation of the glass curtain wall is a systematic and precise project. Unlike ordinary door and window products, the glass curtain wall involves multiple structural nodes, including the main frame, sub-frame, glass panel, sealing structure, aluminum profile connector, structural adhesive, caulking material, etc. A small size error may cause:

The glass panel does not match the structure, resulting in gaps or installation difficulties

The aluminum profile splicing is misaligned, affecting the appearance and structural safety

The installation time is extended, increasing the project cost

Failure to pass the acceptance or safety hazards

Therefore, accurate measurement is the basis for achieving high-quality curtain wall projects.

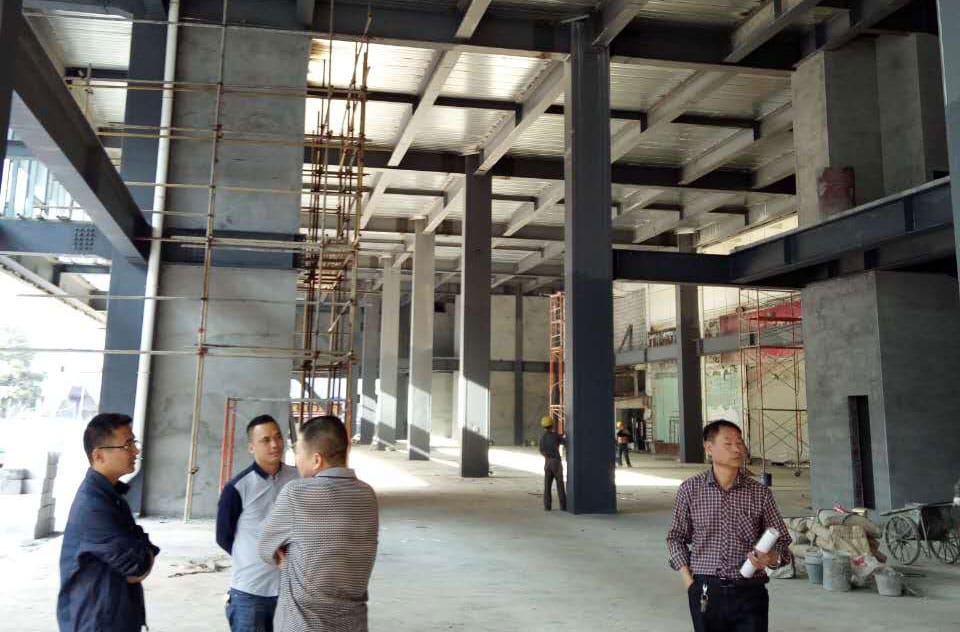

2. Preparations before on-site measurement of glass curtain walls
In order to improve measurement efficiency and accuracy, we usually make the following preparations when we measure glass curtain walls on-site:
1. Site cleaning and removal of obstructions
Make sure the wall area to be measured is clean and free of obstructions (such as scaffolding and debris) to facilitate the work of the measurement personnel.
2. Preparation of drawings or structural drawings
If the project has construction drawings, design drawings, original structural drawings and other materials, please prepare them in advance. Drawings can help us quickly understand the on-site structure and size distribution and improve measurement efficiency.
3. Scope of glass curtain walls to be done
Confirm the specific scope of the measurement area with our sales or project manager in advance, including exterior walls, facades, corners, recesses, balconies, awnings and other parts, so as to arrange sufficient time and tools.
4. Arrange on-site contact persons
Please arrange relevant persons in charge to assist in explaining the on-site structure, functional requirements and project plans so that we can collect measurement data and user needs simultaneously.
3. Glass curtain wall measurement tool list
In order to ensure the accuracy of the data, our measurement engineers will be equipped with professional equipment:
Laser rangefinder (±1mm accuracy)
High-precision tape measure
Level / theodolite
Electronic elevation meter
Notebook or tablet recording system
Photographic equipment (mobile phone can also be used as a substitute)

4. Detailed explanation of glass curtain wall measurement steps
1. Overall evaluation of the facade
Before measurement, the engineer will first observe and record the overall structural status of the building, including:

Orientation and surrounding environment of the building
Floor structure, column grid distribution
Exterior wall material type and base structure
Whether there are inclined surfaces, curved surfaces or special design
The evaluation at this stage is to lay a good foundation for subsequent measurement and arrangement.

2. Establishment of reference points and horizontal lines
It is very important to establish a unified measurement reference point. Usually we will choose a horizontal position on the ground as the “zero point”, set a reference line through a laser level, and use this as a reference to measure the upper and lower dimensions and separations.

3. Opening size measurement
For window openings, curtain wall openings, balcony enclosures and other locations, accurately record the following dimensions:
Net width, net height (opening size)
Wall thickness
Up and down deviations, left and right vertical differences
Whether there are non-linear structures such as bevels and arcs

4. Structural node positioning
For glass curtain walls, the positioning of node positions is crucial, including:
Locations of main beams, secondary beams, columns and connectors
Fixing methods of embedded components (chemical anchors, embedded components, etc.)
Treatment of corners and concave and convex surface nodes
Confirmation of fixing points of overhanging structures (such as canopies and eaves)

5. Confirmation of glass curtain wall installation space
The measurement team will evaluate the working space for glass curtain wall installation to confirm whether the construction conditions are met, such as:
The setting of external scaffolding or hanging basket
Lifting space and access path for installation machinery
Whether special installation solutions need to be customized (such as high-altitude operations, operations in narrow spaces, etc.)

6. Special structure records
If the project has special-shaped windows, glass ceilings, corner hyperboloids, vertical fold lines and other structures, we will:
Take photos and records
Mark the angles and radius of curvature
Perform CAD or 3D modeling auxiliary annotation

V. Sorting and drawing of measurement data
After completing the on-site measurement, our technical team will:
Organize the measurement data and generate a professional measurement record sheet;
Draw a preliminary CAD drawing and mark all key dimensions, nodes and structural information;
Modify the original design plan or optimize the glass curtain wall module division according to the actual measurement value;
The customer can make modification suggestions to the report content, and only after confirmation can the subsequent glass curtain wall in-depth design and production stage be entered

VI. Our commitment to glass curtain wall
As a company specializing in the production and installation of glass curtain wall systems, we promise:
All personnel measuring glass curtain walls have many years of engineering experience;
Provide preliminary CAD design support free of charge;
Strictly keep customer information and drawing data confidential;
Provide support for later size adjustment (such as the customer’s subsequent structural plan);

VII. Conclusion
Accurate measurement of glass curtain walls is the first step to ensure the successful implementation of the project. Through rigorous measurement processes and a professional technical team, we are committed to providing every customer with safe, stable, beautiful and cost-effective glass curtain wall system solutions. Whether your project is located in the city center or overseas, we can respond quickly and provide efficient and standardized on-site measurement of glass curtain wall services.
If you have glass curtain wall project needs, please contact us. We will arrange professional engineers to measure and evaluate on-site to enhance the value and add brilliance to your building!
